FLUKE Voltage Continuity And Current Tester FLUT51000

The T5-1000 is a versatile troubleshooting tool to carry to every job site. Use it to check voltage, continuity, and current with one compact tool. Just select volts, ohms, or current and the tester does the rest.

Automatically measure AC and DC voltage up to 1000 V with precise digital resolution

• Auto-selects between AC and DC voltage
• Suitable for industrial applications

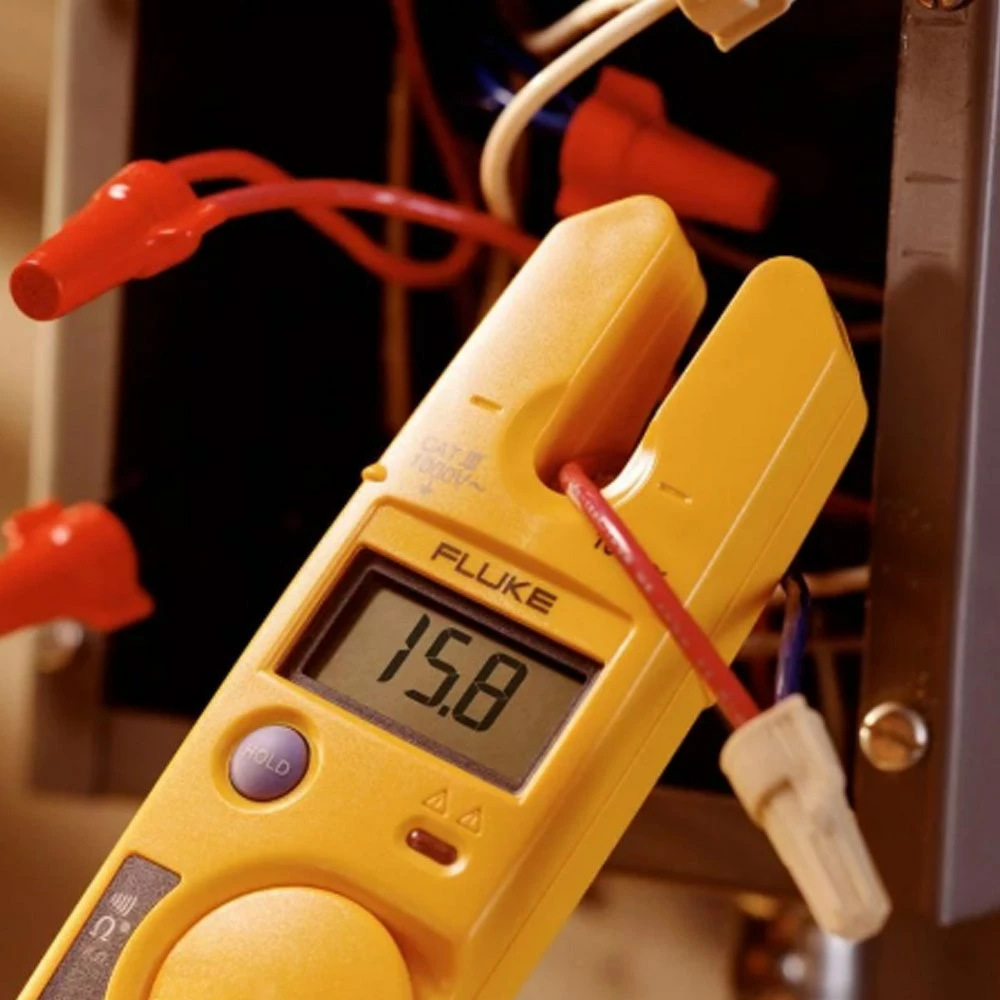

Measure current up to 100 A without breaking the circuit with OpenJaw™ design

• OpenJaw™ design allows for fast and easy current measurement
• Measure current more safely without metallic contact

Troubleshoot resistance problems up to 1000 Ω

• Measure resistance when troubleshooting motors, HVAC systems or electrical systems
• Built-in continuity beeper provides fast and easy go/no-go tests

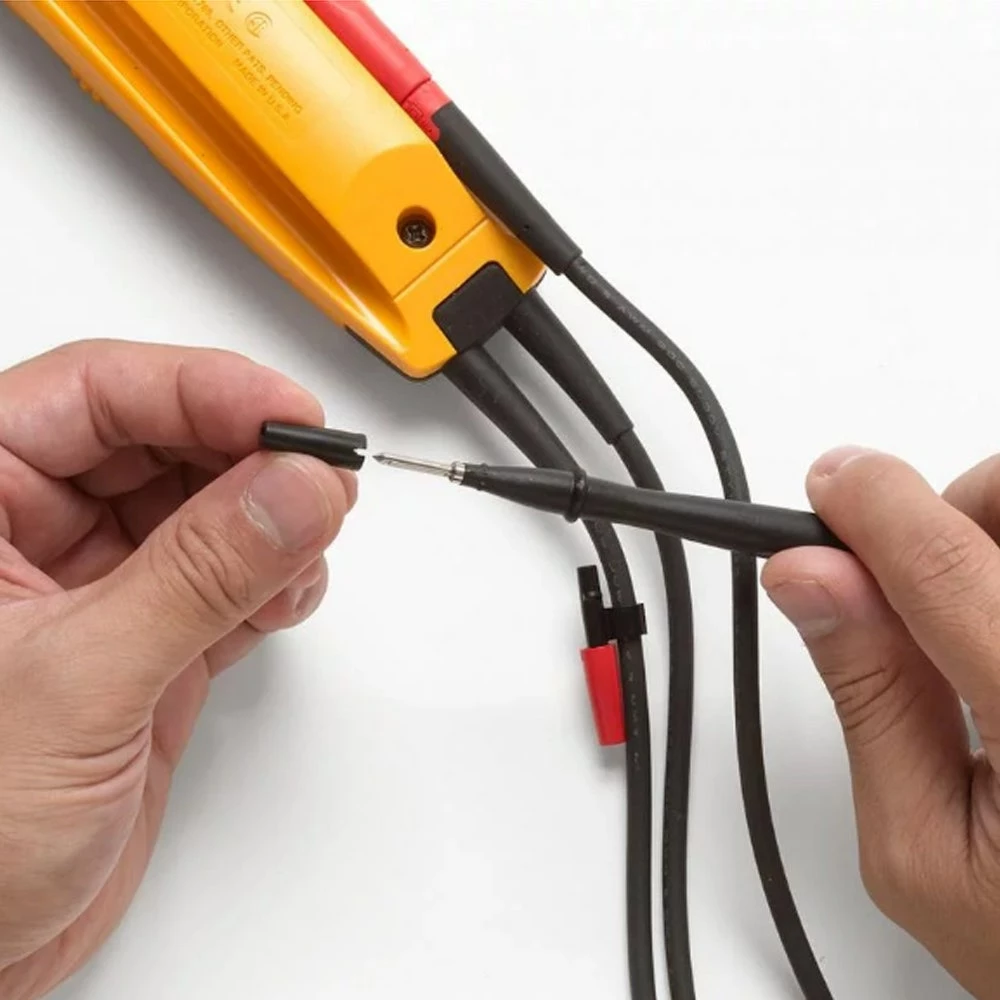

Work in tight spaces with detachable Slim Reach probe tips

• Features a compact design with handy probe storage, easily fits in one hand
• The test lead slot in the back makes the meter an “extended handle” for the probe, leaving the other hand free to place the second lead
• Test leads accept Fluke accessory test clips

Key safety features

• Protected to EN61010-1 CAT IV 600 V / CAT III 1000 V rating
• Integrated protection circuit allows it to stay connected to a voltage source longer than a solenoid tester
• UL and CSA approved

Additional product features

• Withstands a 10 ft. (3 m) drop
• Offers Auto-off mode to conserve battery life
• Fits into an optional holster that attaches to a belt and neatly stows test leads

Specifications:

• Jaw opening: 12.9 mm (0.5 in)
• Max wire size: 1/0 THHN Cable
• Current range AC RMS: 0 to 100.0 A
• Accuracy AC current (50/60 Hz): 3% ± 3 counts
• AC response: Averaging
• Voltage range: AC/DC: 0 to 1000 V
• Voltage accuracy:
  • AC: 1.5% ± 2 counts
  • DC: 1% ± 1 count
• Resistance range: 0 to 1000 Ω
• Continuity beeper threshold On: at < 25 Ω, off at > 400 Ω
• Volts indicator LED threshold: Guaranteed on by 30 V AC

Environmental Specifications:

• Operating temperature: -10°C to 50°C
• Storage temperature: -30°C to 60°C
• Humidity (without condensation):
  • 0% to 95% (5°C to 30°C);
  • 0% to 75% (30°C to 40°C);
  • 0% to 45% (40°C to 50°C)
• Dust/water resistance: Yes
• Operating altitude: 2000 meters max
• Temperature coefficient: 0.1 x (specified accuracy)/°C (< 18°C or> 28°C)

Safety Specifications:

• Measurement Category: IEC 61010-2-032, IEC61010-2-033: CAT IV 600 V / CAT III 1000 V, 100 A ac
• Agency approvals: CSA, TUV
• Maximum voltage: 1000 V between any terminal and earth ground

Mechanical and General Specifications:

• Battery life: 200-hour zinc chloride, 400-hour alkaline
• Battery type: 2 x AA
• Low battery indicator: Yes
• Current sensor opening: 12.9 mm
