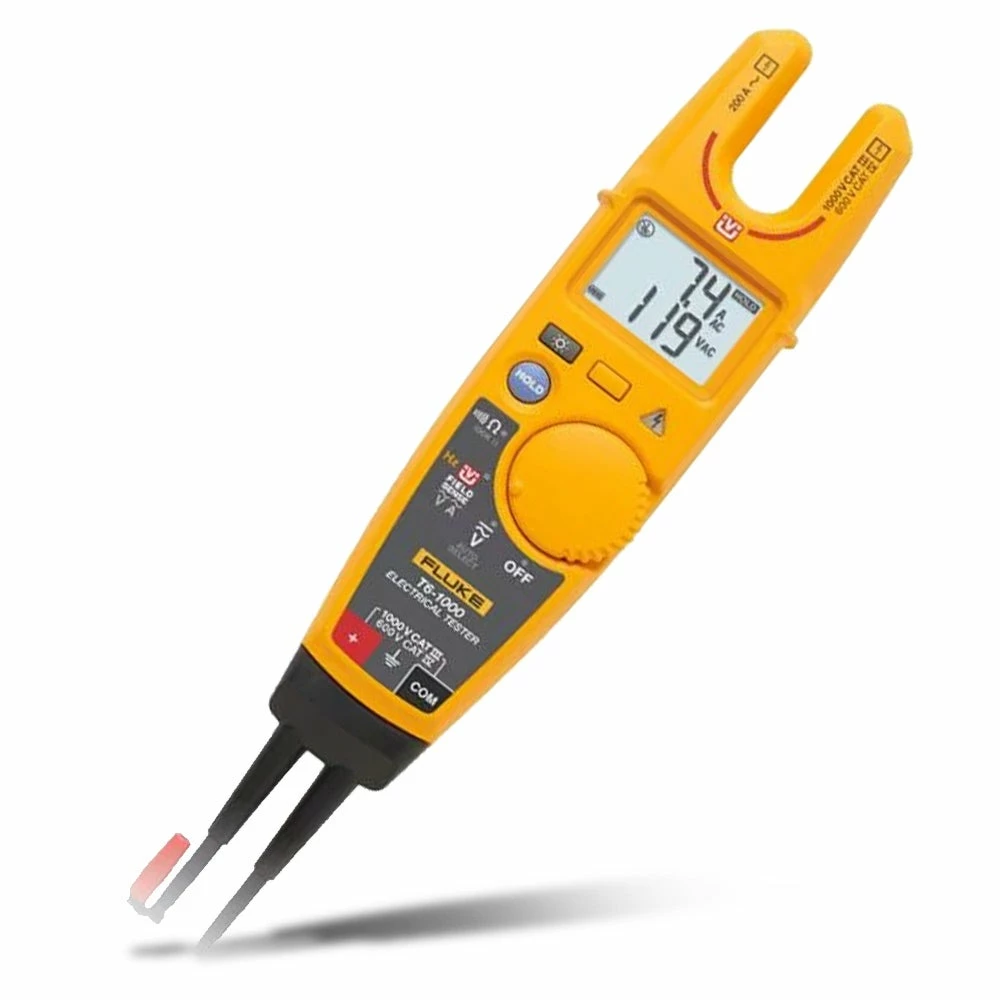

FLUKE TR-1000 Electrical Tester FLUT61000

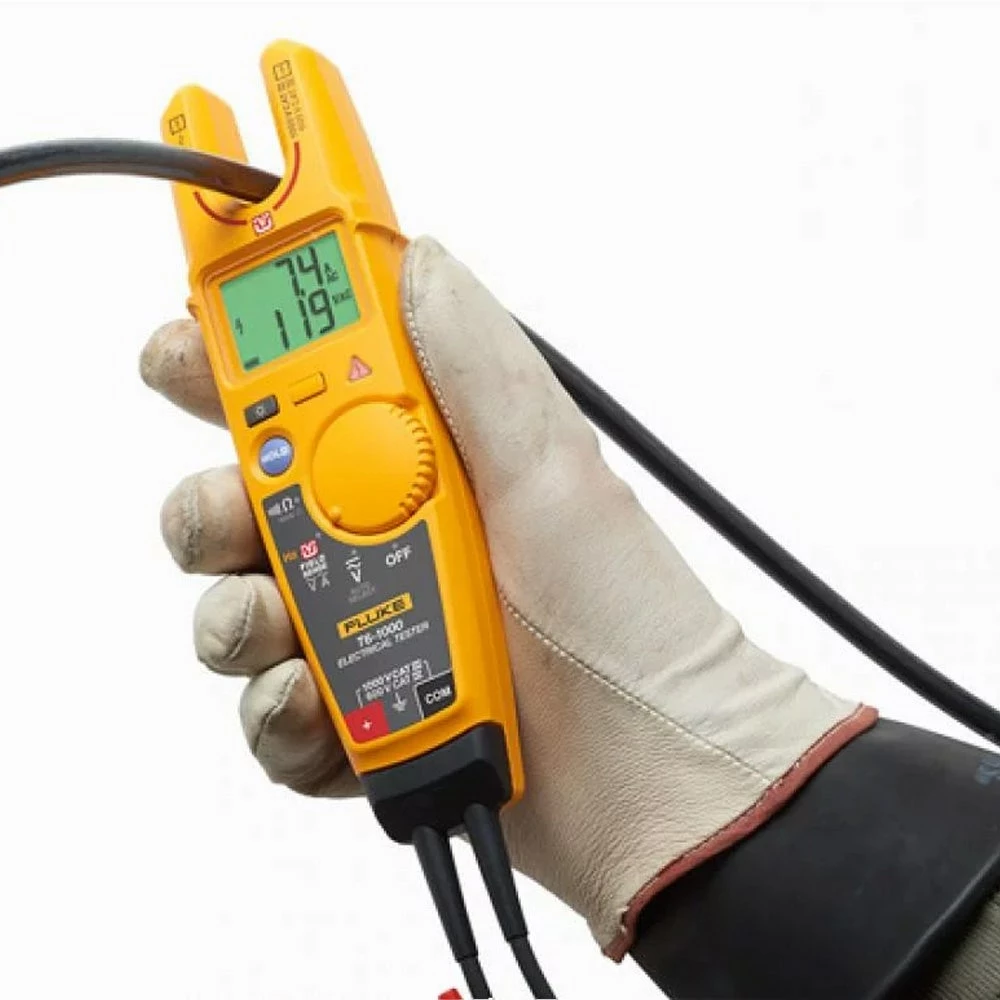

• Be safer: Measure voltage to 1000 V ac through the open fork, without test leads.

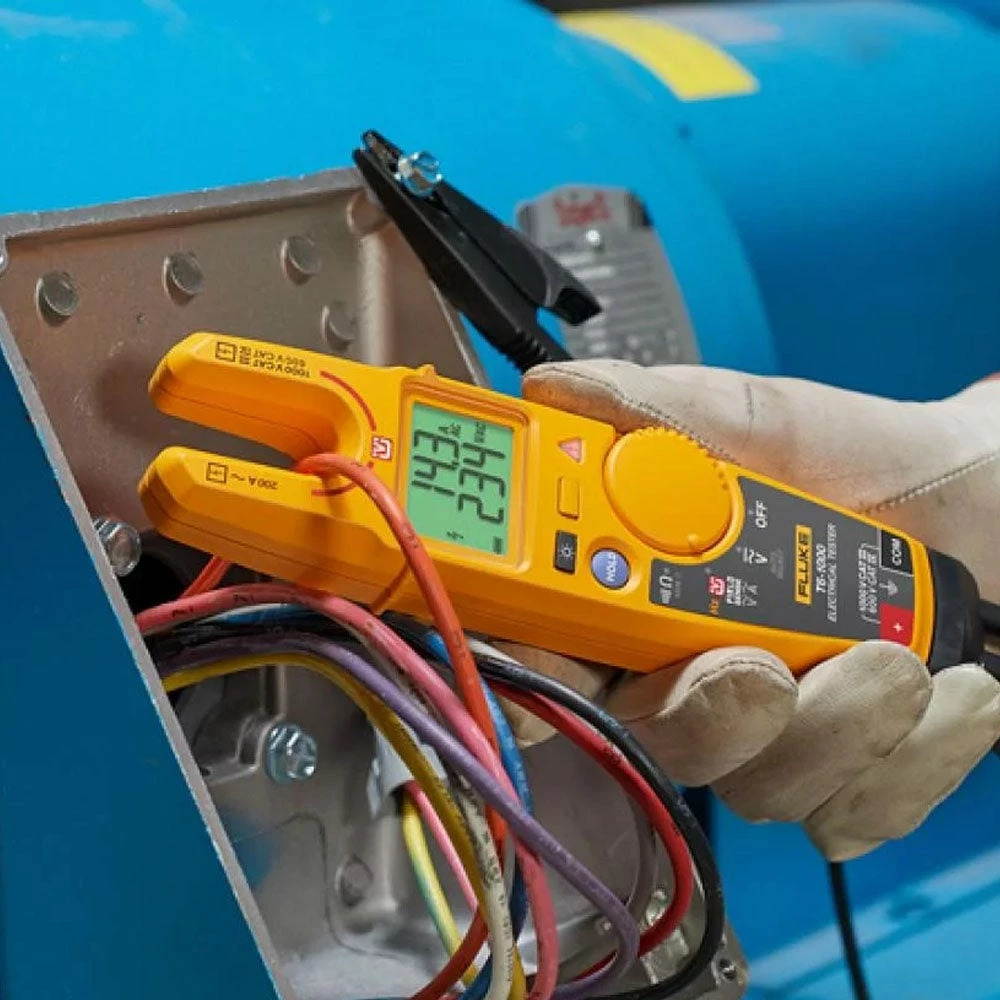

• Be faster: No need to open covers or remove wire nuts.

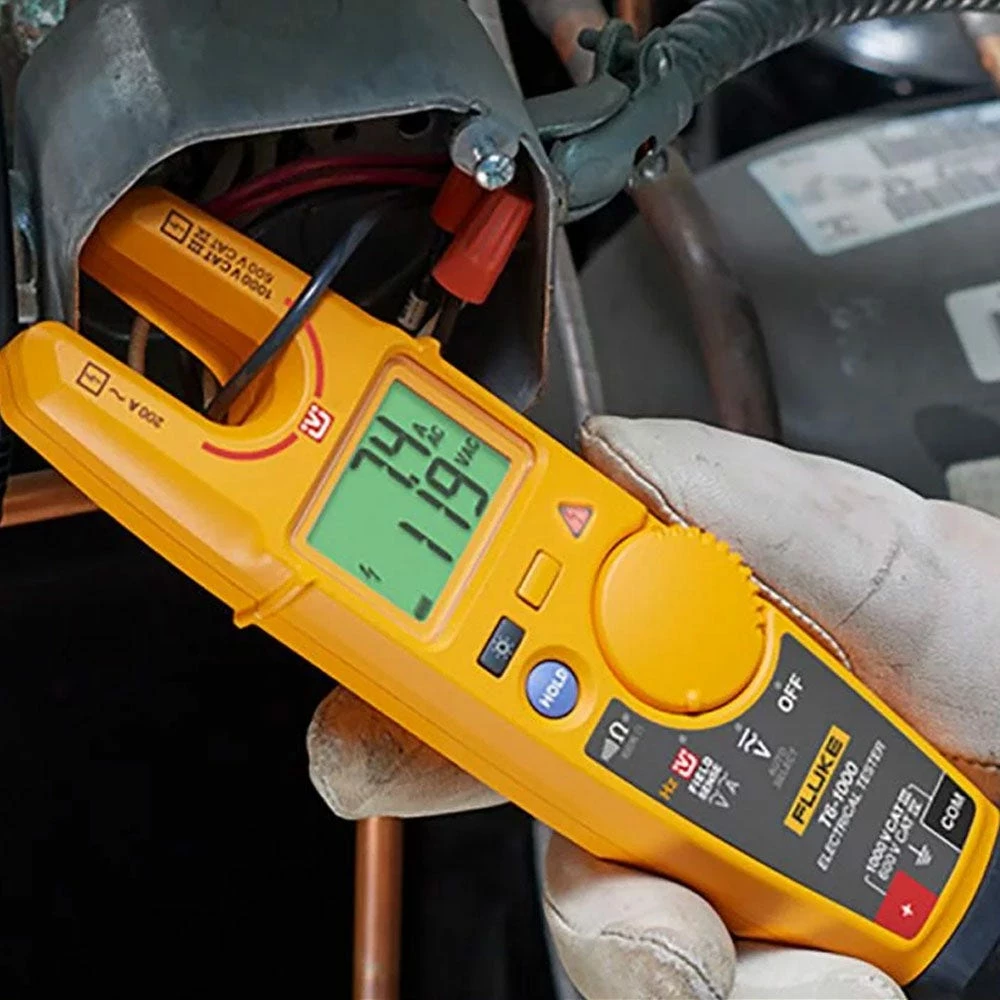

• Be more efficient: Simultaneously measure voltage and current.
• Be everywhere: 17.8 mm open fork is widest in the industry; measure up to 200 A on 4/0 wires (120 mm2).
• Go beyond simple detection. Actually measure ac voltage and current values without test leads.

Measurement Specifications
Function	Requires test leads	Range	Resolution	Accuracy[1]
FieldSense ac voltage true-rms	No	1000 V	1 V	± (3 % + 3 counts) 45 Hz – 66 Hz[2][3]
FieldSense ac current true-rms	No	200.0 A	0.1 A	± (3% + 3 counts) 45 Hz – 66 Hz
FieldSense frequency (Hz)	No	45 Hz – 66 Hz	1 Hz	± (1% + 2 counts)[3]
Volts ac true-rms	Yes	1000 V	1 V	± (1.5% + 2 counts) 45 Hz – 66 Hz
Volts dc	Yes	1000 V	1 V	± (1% + 2 counts)
Resistance	Yes	2000 Ω	1 Ω	± (1% + 2 counts)
	Yes	20.00 kΩ	0.01 kΩ
	Yes	100.0 kΩ	0.1 kΩ
Safety		1000 V CAT III 600 V CAT IV

Specifications

• Calibration: 1-year calibration cycle
• Jaw opening: 17.8mm

Temperature	Operating	-10 °C to +50 °C (14 °F to 122 °F)
	Storage	-30 °C to +60 °C (-22 °F to +140 °F)
Altitude	Operating	2,000 m (6,562 feet)
	Storage	10,000 m (32,808 feet)
Relative Humidity	0% to 90%, 5 °C to 30 °C (41 °F to 86 °F)
	0% to 75%, 30°C to 40 °C (86 °F to 104 °F)
	0% to 45%, 40°C to 50 °C (104 °F to 122 °F)
Battery Type and Life	2 x AA (IEC LR6); 360 hours continuous, typical; 200 hours using FieldSense
Temperature coefficient	0.1 x (specified accuracy) / °C for <18°C or >28 °C
	0.1 x (specified accuracy) / °C for <18°C or >28 °C
Safety	IEC/EN 61010-1: Pollution Degree 2
Electromagnetic Environment	IEC/EN 61326-1: Portable
